JBL Bar 1000 Sound Bar
JBL Bar 1000 Sound Bar
72,665 EGP
True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound

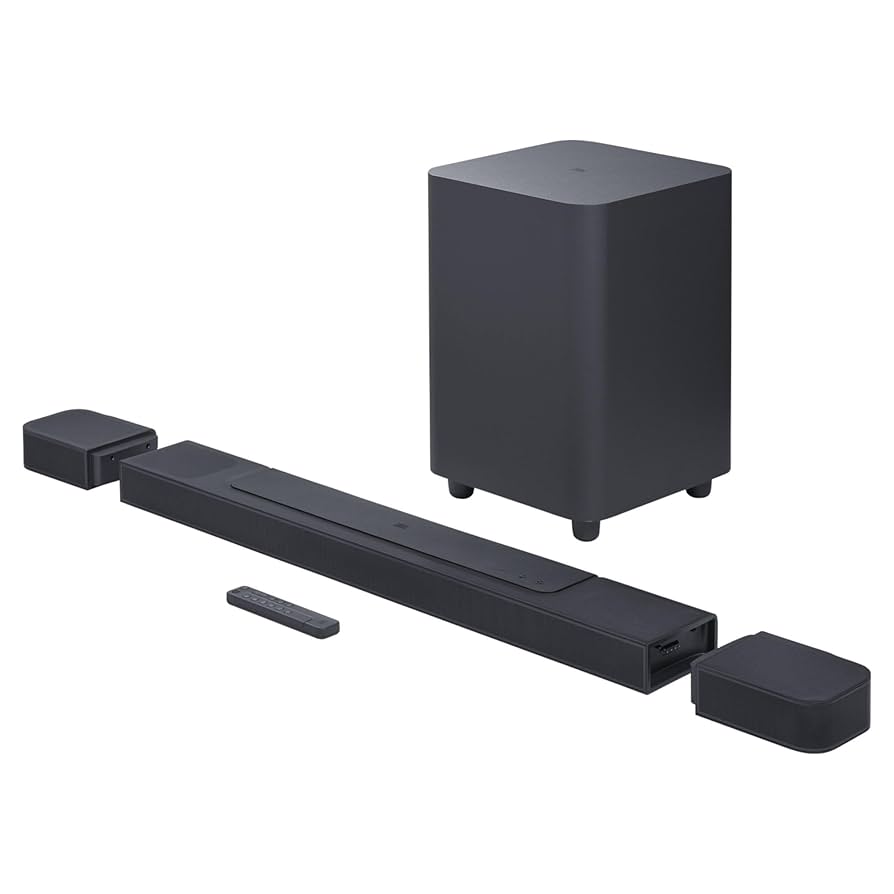

Immerse yourself in theater-quality 3D sound. With two up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1000 delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.
Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.
Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.
General Specifications
- Model
- BAR 1000
- Sound system
- 7.1.4 channel
- Power supply
- 100 – 240V AC, ~ 50/60Hz
- Networked standby power
- < 2.0W
- Operating temperature
- 0°C – 45°C
Audio Specifications
- Total speaker power output (Max @THD 1%)
- 880W
- Soundbar output power (Max @THD 1%)
- 440W
- Surround speaker output power (Max @THD 1%)
- 2x 70W
- Subwoofer output power (Max. @THD 1%)
- 300 W
- Soundbar transducer
- 5x (46×90)mm racetrack drivers, 3x 0.75″ (20mm) tweeters, 2x 2.75″ (70mm) up-firing full-range drivers
- Surround speaker transducer
- 0.75″ (20mm) tweeters, 2.75″ (70mm) up-firing full-range drivers
- Subwoofer transducer
- 10” (260mm)
- Frequency response
- 33Hz – 20kHz (-6dB)
- Audio inputs
- 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Total soundbar dimensions (W x H x D)
- 1194 x 56 x 125mm / 47″ x 2.2″ x 4.9″
- Main soundbar dimensions (W x H x D)
- 884 x 56 x 125 mm / 34.8″ x 2.2″ x 4.9″
- Detachable surround speaker dimensions (each) (W x H x D)
- 155 x 56 x 125 mm / 6.1″ x 2.2″ x 4.9″
- Subwoofer dimensions (W x H x D)
- 305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″
- Soundbar weight
- 3.7 kg / 8.2 lbs
- Detachable surround speaker weight (each)
- 1.4kg / 3.1 lbs
- Subwoofer weight
- 10 kg / 22 lbs
- Packaging dimensions (W x H x D)
- 1000 x 375 x 475 mm/ 39.4″ x 14.8″ x 18.7″
- Packaging Weight
- 19.4 kg / 42.7 lbs
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file format
- MP3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 – 48 kHz
- MP3 bitrate
- 80 – 320 kpbs
- Bluetooth version
- 5.3
- Bluetooth profile
- A2DP 1.2, AVRCP 1.5
- Bluetooth transmitter frequency range
- 2400MHz – 2483.5MHz
- Bluetooth transmitter power
- <15dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
- 2.4G Wi-Fi transmitter power
- < 20dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
- 2.4G wireless frequency range
- 2406 – 2474MHz
- 2.4G wireless power
- ＜10dBm (EIRP）
Battery
- Lithium battery
- 3.635V, 3283mAh
