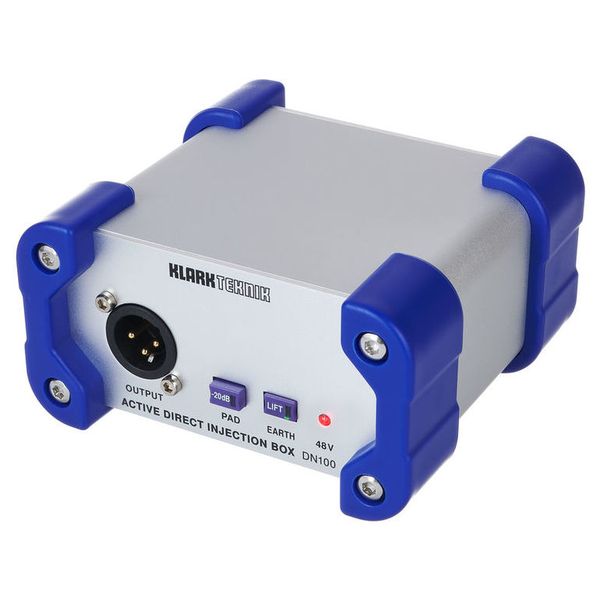

Klarkteknik DN100 V2 Direct Box

4,990 EGP

Features

  • Active DI box with high headroom design and +48 V phantom power for extended dynamic range
  • Fully transformer-isolated design ensures electrical separation between PA and stage equipment
  • Balanced line input on industry standard XLR and high impedance input and link output on 1/4″ TRS connectors
  • 20 dB input pad and earth lift switches
  • Aluminium extrusion casing with protective rubber corners
  • Compact and rugged design
Ask For Availability
SKU: DN100V2 Category: Tag:

Specification

Inputs
Connectors 2 x 1/4″ TRS and 3-pin XLR linked in parallel
Impedance 1 MΩ nominal, balanced or unbalanced, 20 kΩ (XLR only)
Max input level 35 dBu (with pad enabled)
Attenuator 20 dB pad
Outputs
Connector 3-pin XLR
Impedance 50 Ω
Max output level 15 dBu with 10 kΩ load
Min load 600 Ω
System
Noise -103 dBu, 22 Hz to 22 kHz unweighted,

with input terminated by 10 kΩ resistor
Frequency response 20 Hz to 20 kHz, ±1 dB, 10 kΩ load
Distortion (THD + N) Typically <0.005% @ 1 kHz, +10 dBu
Power Requirement
Voltage +48 V phantom
Current consumption <10 mA
Physical
Dimensions 118 x 63 x 112 mm (4.7 x 2.5 x 4.4″)
Weight (4.7 x 2.5 x 4.4″) Weight 0
